<%NUMBERING1%>.<%NUMBERING2%>.<%NUMBERING3%> PRTG Manual: NetApp I/O Sensor


This sensor supports NetApp cDOT as of version 8.3 or ONTAP from versions 9.0 to 9.12. If you use ONTAP as of version 9.11, we recommend that you use the NetApp I/O v2 sensor.

The NetApp I/O sensor monitors input and output operations of a NetApp cDOT or ONTAP storage system accessing the application programming interface (API) via the Simple Object Access Protocol (SOAP).

NetApp I/O Sensor

NetApp I/O Sensor

i_square_cyanFor a detailed list and descriptions of the channels that this sensor can show, see section Channel List.

Sensor in Other Languages

  • Dutch: NetApp I/O
  • French: NetApp E/S
  • German: NetApp I/O
  • Japanese: NetApp I/O
  • Portuguese: NetApp E/S
  • Russian: Ввод-вывод NetApp
  • Simplified Chinese: NetApp I/O
  • Spanish: E/S de NetApp


Consider the following remarks and requirements for this sensor:



Enabled ONTAPI access

  • The ONTAPI user account that you use with this sensor requires access to the DATA ONTAP API (ONTAPI) so that the sensor can request data from it. The access is enabled by default.
  • If access is disabled, locally use the following command on the cluster console to enable ONTAPI access for the user:

services web> modify -vserver clusterd -name ontapi -enabled true

  • For this sensor, read-only user rights are sufficient for the ONTAPI user account that you use to access ONTAPI. Modify or add this user with a suitable role in the console under Cluster | ClusterX | Configuration | Security | Users

.NET 4.7.2 or later

  • This sensor requires .NET 4.7.2 or later from Microsoft on the probe system. In a cluster, install it on every cluster node.

i_round_redIf the framework is missing, you cannot create this sensor.

i_square_cyanFor more information, see the Knowledge Base: Which .NET version does PRTG require?

NetApp versions

  • This sensor supports NetApp cDOT as of version 8.3 and NetApp ONTAP as of version 9.0.


  • This sensor supports IPv6.

Performance impact

  • This sensor has a very low performance impact.


  • You can define NetApp API credentials (User Name and Password) in the credentials for Windows systems settings of the parent device. This way, you do not need to individually enter credentials for each NetApp sensor that you add to the same device.

Basic Sensor Settings

Basic Sensor Settings

Basic Sensor Settings

The sensor has the following default tags that are automatically predefined in the sensor's settings when you add the sensor:

  • cdot
  • netapp
  • ontap
  • soap

i_square_cyanFor more information about basic sensor settings, see section Sensor Settings.

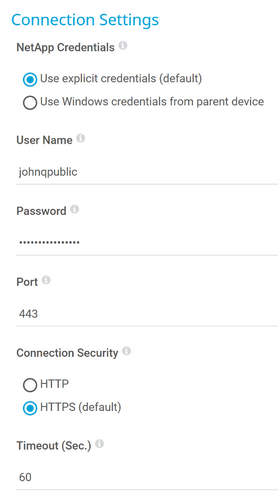

NetApp Connection

NetApp Connection

NetApp Connection



NetApp Credentials

Specify which credentials you want to use to connect to the NetApp API:

  • Use explicit credentials: Use individual NetApp API credentials.
  • Use Windows credentials from parent device: Use the credentials (User Name and Password) in the parent device settings in section Credentials for Windows Systems.
    i_round_blueDefining credentials in the parent device is useful if you add several NetApp sensors to this device because you do not need to individually enter credentials for each NetApp sensor.

User Name

This setting is only visible if you select Use explicit credentials above.

Enter a user name for access to the NetApp API. Enter a string.

i_round_blueRead-only rights for this ONTAP user account are sufficient.


This setting is only visible if you select Use explicit credentials above.

Enter the password of the user for access to the NetApp API. Enter a string.


Enter a port number on which you can access the NetApp API. Enter an integer. The default port is 443.

Connection Security

Define if the connection to the NetApp API is Secure Sockets Layer (SSL)/Transport Layer Security (TLS) secured:

  • HTTP: Use an unsecured HTTP connection.
  • HTTPS: Use a secure connection to the defined port to send the query.

Timeout (Sec.)

Enter a timeout in seconds for the request. Enter an integer. The maximum timeout value is 900 seconds (15 minutes).

i_round_blueIf the reply takes longer than this value, the sensor cancels the request and shows a corresponding error message.

NetApp Specific

NetApp Specific

NetApp Specific



System Nodes

The ID of the system node that this sensor monitors.

Debug Options

Debug Options

Debug Options



Result Handling

Define what PRTG does with the sensor result:

  • Discard result (default): Do not store the sensor result.
  • Store result: Store the last sensor result in the \Logs\sensors subfolder of the PRTG data directory on the probe system. The file names are Result of Sensor [ID].txt, Result of Sensor [ID].Data.txt, and Result of Sensor [ID].log. This setting is for debugging purposes. PRTG overwrites these files with each scanning interval.

i_podThis option is not available when the sensor runs on the hosted probe of a PRTG Hosted Monitor instance.

i_round_blueIn a cluster, PRTG stores the result in the PRTG data directory of the master node.

Sensor Display

Sensor Display

Sensor Display



Primary Channel

Select a channel from the list to define it as the primary channel. In the device tree, PRTG displays the last value of the primary channel below the sensor's name. The available options depend on what channels are available for this sensor.

i_round_blueYou can set a different primary channel later by clicking b_channel_primary below a channel gauge on the sensor's Overview tab.

Graph Type

Define how this sensor shows different channels:

  • Show channels independently (default): Show a graph for each channel.
  • Stack channels on top of each other: Stack channels on top of each other to create a multi-channel graph. This generates a graph that visualizes the different components of your total traffic.
    i_round_redYou cannot use this option in combination with manual Vertical Axis Scaling (available in the channel settings).

Stack Unit

This setting is only visible if you select Stack channels on top of each other above.

Select a unit from the list. PRTG stacks all channels with this unit on top of each other. By default, you cannot exclude single channels from stacking if they use the selected unit. However, there is an advanced procedure to do so.

Inherited Settings

By default, all of these settings are inherited from objects that are higher in the hierarchy. We recommend that you change them centrally in the root group settings if necessary. To change a setting for this object only, click b_inherited_enabled under the corresponding setting name to disable the inheritance and to display its options.

i_square_cyanFor more information, see section Inheritance of Settings.

Channel List

i_round_blueWhich channels the sensor actually shows might depend on the target device, the available components, and the sensor setup.




The number of CIFS operations

i_round_blueThis channel is the primary channel by default.

Disk Read

The disk read speed

Disk Write

The disk write speed


In the channel table on the Overview tab, this channel never shows any values. PRTG uses this channel in graphs and reports to show the amount of time in which the sensor was in the Down status


The number of FCP operations

FCP Read

The FCP read speed

FCP Write

The FCP write speed

HDD Read

The HDD read speed

HDD Write

The HDD write speed


The number of HTTP operations


The number of iSCSI operations

ISCSI Partner Ops

The number of iSCSI partner operations

ISCSI Partner Read

The iSCSI partner read speed

ISCSI Partner Write

The iSCSI partner write speed


The iSCSI read speed


The iSCSI write speed

Network Read

The network read speed

Network Write

The network write speed


The number of NFS operations

SSD Read

The SSD read speed

SSD Write

The SSD write speed

Tape Read

The tape read speed

Tape Write

The tape write speed
